Double Spindle CNC Engraving Machine SM 3025 S2 .

Name: Double Spindle CNC Engraving Machine SM 3025 S2 .
Brand: SHUSA MECHATRONICS
Price: 1141000.0 INR
Availability: InStock

Price 1141000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Double Spindle CNC Engraving Machine SM 3025 S2 . Specification

Product Type
Double Spindle CNC Engraving Machine SM3025 S2 .

General Use
stone engraving, marble and granite cutting, wood carving, acrylic cutting, signage manufacturing, and interior decoration work.

Material
Stainless Steel

Type
CNC Router

Capacity
1 Pcs/hr

Weight (kg)
2210 Kilograms (kg)

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
Yes

Power Source
Electric

Power Consumption
7.5 Kilowatt (kW)

Rigidity
High

Voltage
10 Horsepower (HP)

Motor
AC Motor

Table Size
3000 X 2500

Spindle Speed
24000 RPM

Axial Choice
3

Dimension (L*W*H)
3000 X 2500 X 330 Millimeter (mm)

Feature
High Speed

Color
White

Warranty
1

Double Spindle CNC Engraving Machine SM 3025 S2 . Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Week

About Double Spindle CNC Engraving Machine SM 3025 S2 .

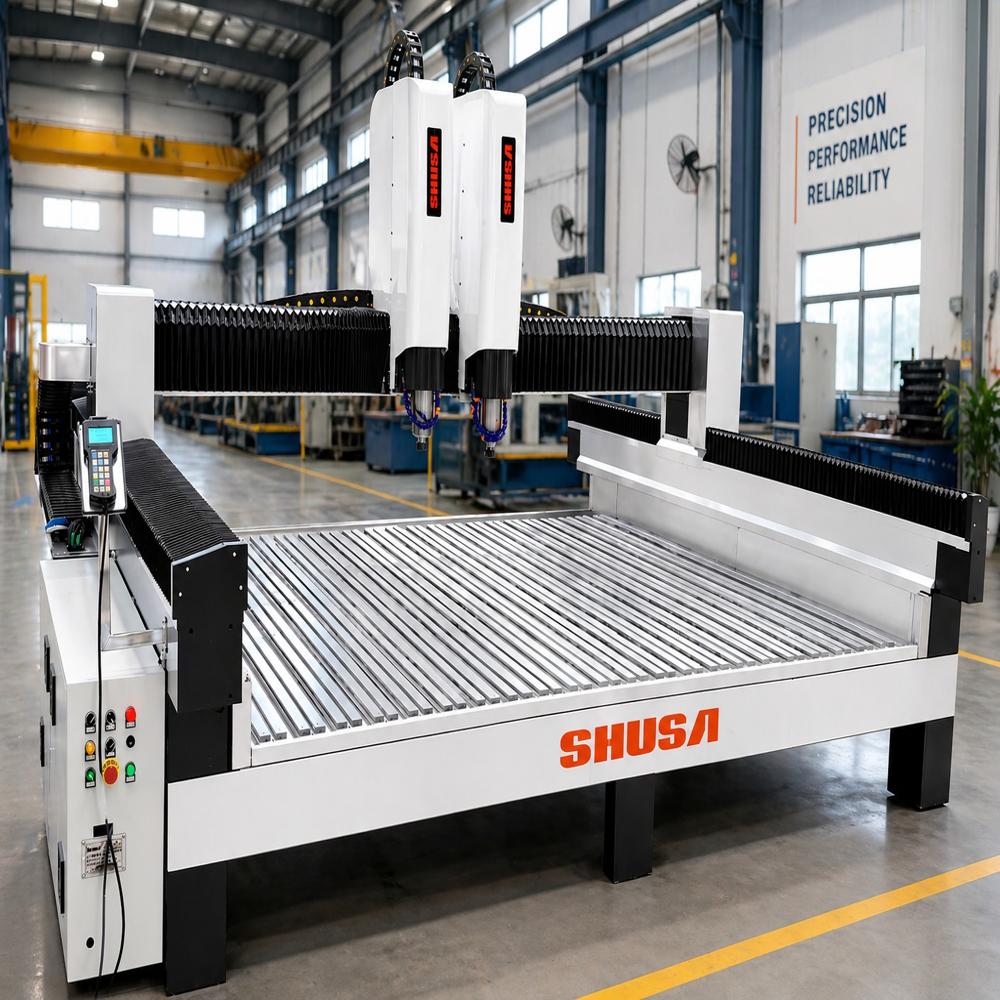

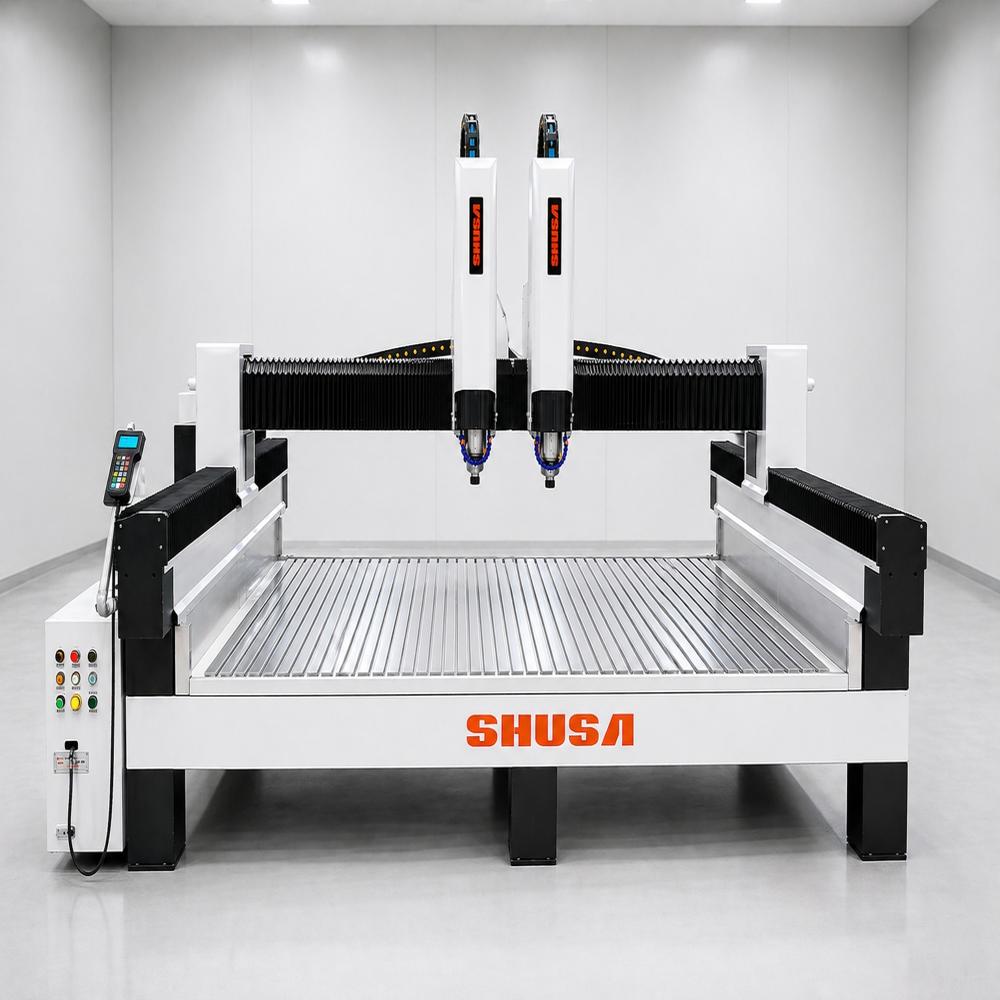

SM3025 S2 is a heavy-duty industrial CNC engraving and cutting machine designed for high-precision and high-speed machining applications. It features a large working area of 3000 2500 mm (3025 size), making it ideal for large-scale production work. The machine is equipped with a powerful 7.5 kW water-cooled spindle, high-accuracy AC servo motors, and a strong steel welded body structure for stability during heavy cutting operations. It uses a rack and pinion drive system on X and Y axes with precision linear guideways for smooth movement and accurate results. The S2 model typically includes a dual-head configuration for increased productivity, allowing simultaneous operation and faster output. It is widely used in industries like stone engraving, marble and granite cutting, wood carving, acrylic cutting, signage manufacturing, and interior decoration work. The machine supports automatic lubrication, water cooling system, and user-friendly CNC control for efficient operation, making it suitable for both small workshops and large-scale industrial production.

Exceptional Precision and Versatility

With three axes and double high-speed spindles, the SM 3025 S2 CNC Engraving Machine delivers precise, repeatable outputs on a range of materials, including stainless steel, stone, wood, acrylic, marble, and granite. It is a versatile asset for signage, decoration, and manufacturing industries seeking automation and detail.

User-Friendly, Automated Operation

This machine features sophisticated PLC control and a computerized system, boosting productivity with minimal manual intervention. Its automatic bar feeder, touchscreen interface, and reliable AC motor optimize operations, ensuring consistent, high-quality results for operators of various skill levels.

FAQ's of Double Spindle CNC Engraving Machine SM 3025 S2 .:

Q: How does the double spindle feature benefit my production process?

A: The double spindle design allows simultaneous operations, enabling you to engrave or cut two pieces or different patterns at once, thereby doubling productivity and reducing completion times for batch processes.

Q: What materials can the SM 3025 S2 CNC Engraving Machine process?

A: This machine is versatile and can handle stainless steel, stone, marble, granite, wood, and acrylic, making it ideal for industries involved in engraving, cutting, and detailed manufacturing of diverse products.

Q: When is preventive maintenance recommended for this machine?

A: Preventive maintenance should be conducted every few months or after significant runtime to ensure optimal performance. Regular checks of the spindles, lubrication of axes, and inspection of the bar feeder are recommended for continued efficiency and reliability.

Q: Where is the SM 3025 S2 ideally used?

A: This machine fits perfectly in factories, workshops, or manufacturing units specializing in stone engraving, sign making, wood carving, acrylic cutting, and architectural decoration due to its robust size and high stability.

Q: What is the process for programming the engraving patterns?

A: The SM 3025 S2 comes equipped with PLC control and a computerized interface. Patterns and designs are programmed via compatible software, which is then transferred to the machine for precise, automated execution.

Q: How does the machine ensure high speed and accuracy?

A: With a spindle speed of 24,000 RPM, high rigidity construction, and advanced PLC controls, the SM 3025 S2 delivers rapid operations while maintaining tight tolerances needed for intricate workpieces.
