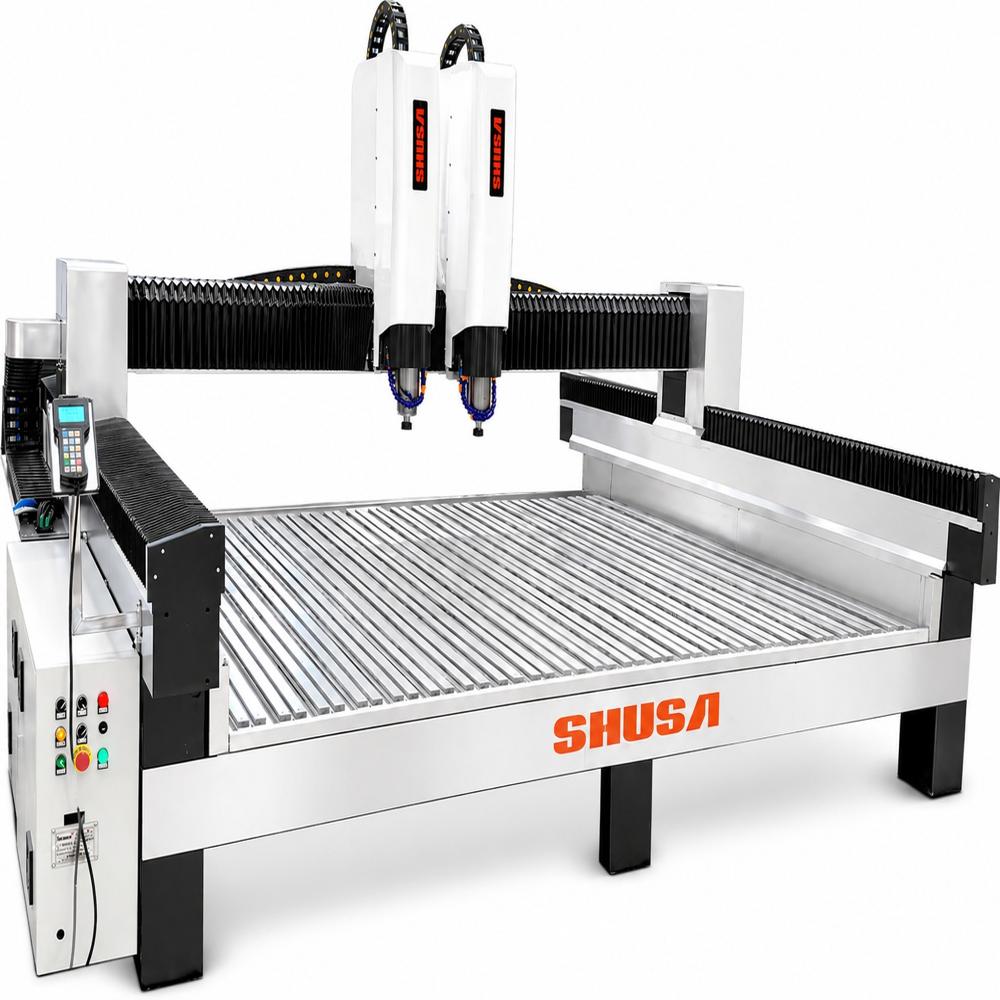

About Double Head CNC Stone Carving Machine .
SM3025 S2 is a heavy-duty industrial CNC engraving and cutting machine designed for high-precision and high-speed machining applications. It features a large working area of 3000 2500 mm (3025 size), making it ideal for large-scale production work. The machine is equipped with a powerful 7.5 kW water-cooled spindle, high-accuracy AC servo motors, and a strong steel welded body structure for stability during heavy cutting operations. It uses a rack and pinion drive system on X and Y axes with precision linear guideways for smooth movement and accurate results. The S2 model typically includes a dual-head configuration for increased productivity, allowing simultaneous operation and faster output. It is widely used in industries like stone engraving, marble and granite cutting, wood carving, acrylic cutting, signage manufacturing, and interior decoration work. The machine supports automatic lubrication, water cooling system, and user-friendly CNC control for efficient operation, making it suitable for both small workshops and large-scale industrial production.
- Model: SM3025 S2
- Machine Type: CNC Engraving & Cutting Machine (Double Head)
- Working Area: 3000 2500 mm
- Spindle Power: 7.5 kW Water-Cooled Spindle
- Spindle Speed: 0 24,000 RPM
- Drive System: Rack and Pinion (X & Y Axis)
- Guide System: Linear Guide Rails
- Motors: AC Servo Motors (High Precision)
- Control System: CNC Controller (DSP / NC Studio)
- Z Axis Travel: Approx. 300 450 mm
- Max Working Speed: Up to 25,000 30,000 mm/min
- Table Structure: Heavy Duty Steel Fabricated Body
- Cooling System: Water Cooling for Spindle
- Lubrication System: Automatic Lubrication System
- Working Voltage: 380V / 3 Phase / 50Hz
- Repeat Positioning Accuracy: 0.02 mm (approx.)
- Application Materials: Marble, Granite, Stone, Wood, MDF, Acrylic, PVC
- Special Feature: Double Head for High Production Efficiency
Advanced Dual-Head TechnologyThe Double Head CNC Stone Carving Machine utilizes two synchronized carving heads, allowing for simultaneous operations on a large table (3000 x 2500 mm). This design maximizes productivity and efficiency, especially when dealing with complex or duplicate engravings on materials like stone, wood, or acrylic. Dual-head configuration assists in reducing cycle time, making it ideal for both mass production and intricate works.
Precision and Power CombinedEquipped with a 24000 RPM high-speed AC motor and up to 10 HP, this CNC router delivers remarkable cutting speed and fine detail on hard or soft materials. The machine's high rigidity and sturdy stainless steel construction guarantee vibration-free operation and extended durability. The PLC control system further ensures consistent accuracy and smooth operation throughout extensive production runs.
Versatile Material ApplicationThis CNC machine supports a broad spectrum of applications, compatible with marble, granite, MDF, PVC, and various woods. Operators can create everything from architectural elements to artistic engravings, thanks to the 3-axis control and sophisticated computerized functions. The automatic features allow for smooth and safe transitions between different material types, enhancing workflow and adaptability.
FAQ's of Double Head CNC Stone Carving Machine .:
Q: How does the double head feature improve efficiency in the CNC carving process?
A: The double head configuration allows the machine to work on two sections of a material simultaneously or perform duplicate patterns at once. This significantly reduces processing time and enhances productivity, making it ideal for bulk production or paired projects.
Q: What materials can be processed using this CNC stone carving machine?
A: This machine is suitable for carving marble, granite, stone, wood, MDF, acrylic, and PVC. Its robust structure and adaptable settings enable it to handle both hard stones and softer composite materials efficiently.
Q: When is routine maintenance required for the Double Head CNC Stone Carving Machine?
A: Regular maintenance checks should be performed based on machine usage-generally, every 150 machine hours or monthly. Routine maintenance includes inspecting the spindle, lubricating axes, cleaning the control panel, and ensuring all electronic connections function properly.
Q: Where can this CNC stone carving machine be installed and used?
A: Ideal for workshops, industrial production floors, and fabrication facilities, the machine should be installed in a well-ventilated space with appropriate electrical provisions (7.5 kW, 10 HP). The large table size fits best in areas designed for sizeable machinery.
Q: What is the process for switching between different materials or designs?
A: Operators can change materials by resetting the machine's computerized parameters to match the specific material type. Designs are uploaded through the CNC software, and the PLC control ensures smooth transitions and precise execution of new patterns.
Q: How does the warranty benefit the user?
A: The 1-year warranty covers parts and manufacturer defects, providing peace of mind and support during the early stages of ownership. This ensures that any unexpected technical issues are addressed without additional cost, promoting uninterrupted production.
