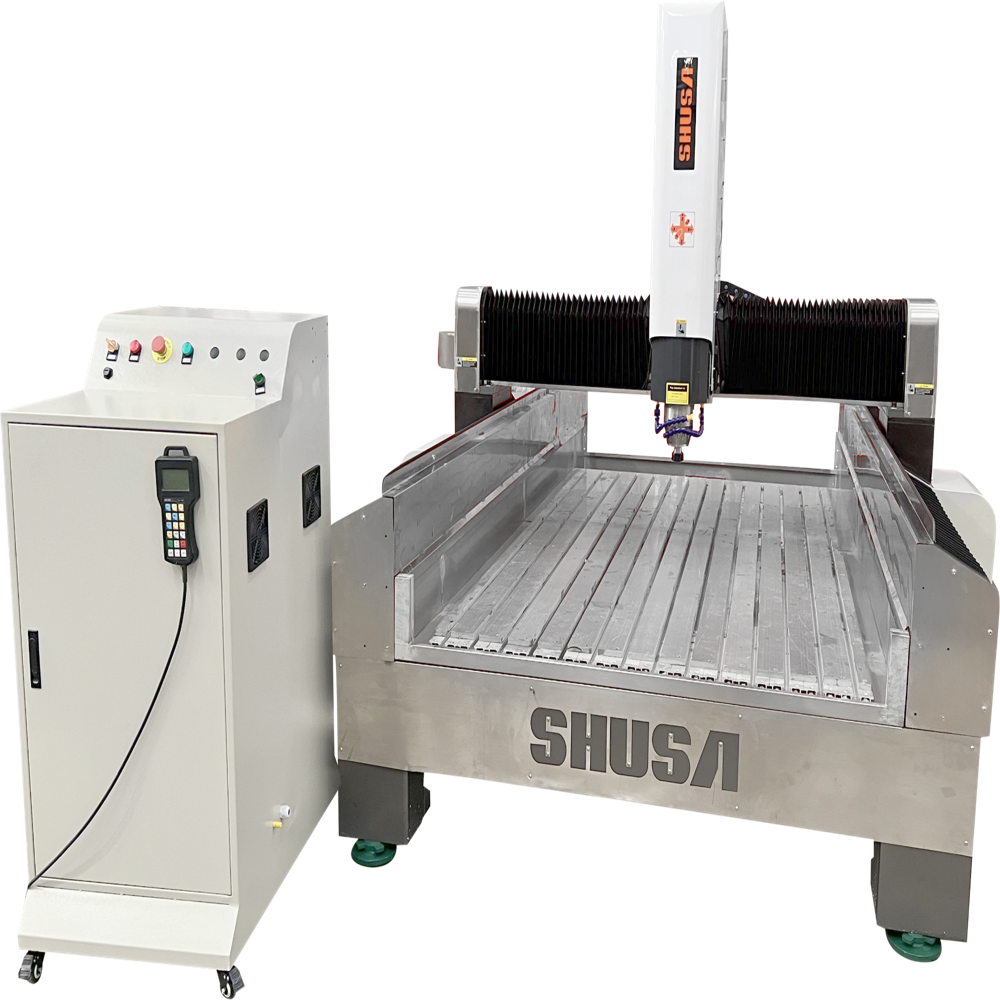

3 Axis CNC Carving Machine

Name: 3 Axis CNC Carving Machine
Brand: SHUSA MECHATRONICS
Price: 751000.0 INR
Availability: InStock

Price 751000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

3 Axis CNC Carving Machine Specification

Product Type
3 Axis CNC Carving Machine

General Use
Photo Engraving, Relief Carving, Letter Engraving, Mould Making

Material
Stainless Steel

Type
Turning Center, CNC Router

Capacity
500-1000 Kg/hr

Weight (kg)
1810 Kilograms (kg)

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
7.5 Kilowatt (kW)

Rigidity
High

Voltage
10 Horsepower (HP)

Motor
AC Motor

Table Size
1300mm x 2500mm

Spindle Speed
24000 RPM

Axial Choice
3

Dimension (L*W*H)
1300 X 2500 X 330 Millimeter (mm)

Feature
High Speed

Color
White

Warranty
1

3 Axis CNC Carving Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Week

About 3 Axis CNC Carving Machine

SM 1300 CNC Stone Engraving Machine is developed to work on hard materials such as granite, natural marble, artificial marble, ceramic tile, sandstone and other decorative materials. SM 1300 CNC Stone Engraving Machine is with better dust-proof and waterproof system. The 0701 decode-free control handle can give a big help to save the design reading time.

Features:

With dust-proof and waterproof system
The diamond cutter and sintered cutter for hard materials make it easier to process vertical letter and pattern on stone.
High rigid frame structure can achieve high speed and high accuracy.
The precise large power spindle can provide high-speed engraving and fine processing.
Automatic cutter sensor improves engraving efficiency.
Power-off protective memory function assures restarting work in the same position after power-off.
Advanced DSP offline control system can provide better stability.

Applications:

Whole cabinet door and table
Marble and ceramic tile craftworks
Gravestone engraving
Individual indoor and outdoor decorations making
Other stone industry

Precision and Versatility for Industrial Carving

This machine excels in producing detailed engravings and complex reliefs on a variety of materials, thanks to its accurate 3-axis movement and powerful spindle. Whether you're working on photo engraving, letter engraving, or custom moulds, the high-speed operation allows you to achieve intricate results in less time. Its robust build ensures minimal vibrations, guaranteeing consistent quality.

Intuitive Automation and Control

The embedded PLC control system streamlines every stage of operation, while full automation and computerized settings reduce manual intervention. Adjustable parameters enable users to optimize speed, feed rates, and spindle performance for different projects. The user-friendly interface supports both beginners and professionals, increasing productivity and reducing the learning curve.

FAQ's of 3 Axis CNC Carving Machine:

Q: How does the 3 Axis CNC Carving Machine operate for intricate engraving tasks?

A: The machine uses advanced computerized controls with PLC automation to precisely move its spindle along three axes, allowing for detailed photo engraving, relief carving, and letter engraving on various materials. Users program the design, and the machine executes the process with high accuracy and speed.

Q: What are the primary benefits of using this CNC machine for mould making and engraving?

A: The main advantages include high rigidity for stable operation, a powerful 24000 RPM spindle for rapid cutting, and a large table size to accommodate sizable workpieces. It delivers consistent quality, speeds up production, and handles detailed carvings efficiently.

Q: When is it recommended to choose this machine for industrial applications?

A: This CNC machine is ideal when high throughput (500-1000 kg/hr) and precision are needed, making it suitable for workshops and manufacturing units focusing on photo engraving, reliefs, or custom moulds. Its robust construction and automation are beneficial for continuous, demanding operations.

Q: Where should the 3 Axis CNC Carving Machine be installed for optimal operation?

A: The machine should be placed in a well-ventilated industrial workspace with sufficient room (at least 1300 x 2500 x 330 mm) for installation and operation. Access to stable electric supply and a dust-free environment will further enhance longevity and reliability.

Q: What is the process for setting up and operating this CNC Router?

A: After installation, users load the desired design file via the computerized interface, configure machining parameters, and secure the workpiece on the table. The automated PLC control guides the machine through the carving sequence, requiring minimal manual intervention.

Q: How is maintenance handled and what support is available during the warranty period?

A: Routine maintenance includes checking the spindle, cleaning debris, and inspecting the motor and controls. During the 1-year warranty, users can access manufacturer and supplier support for troubleshooting, repairs, or parts replacement if necessary.
