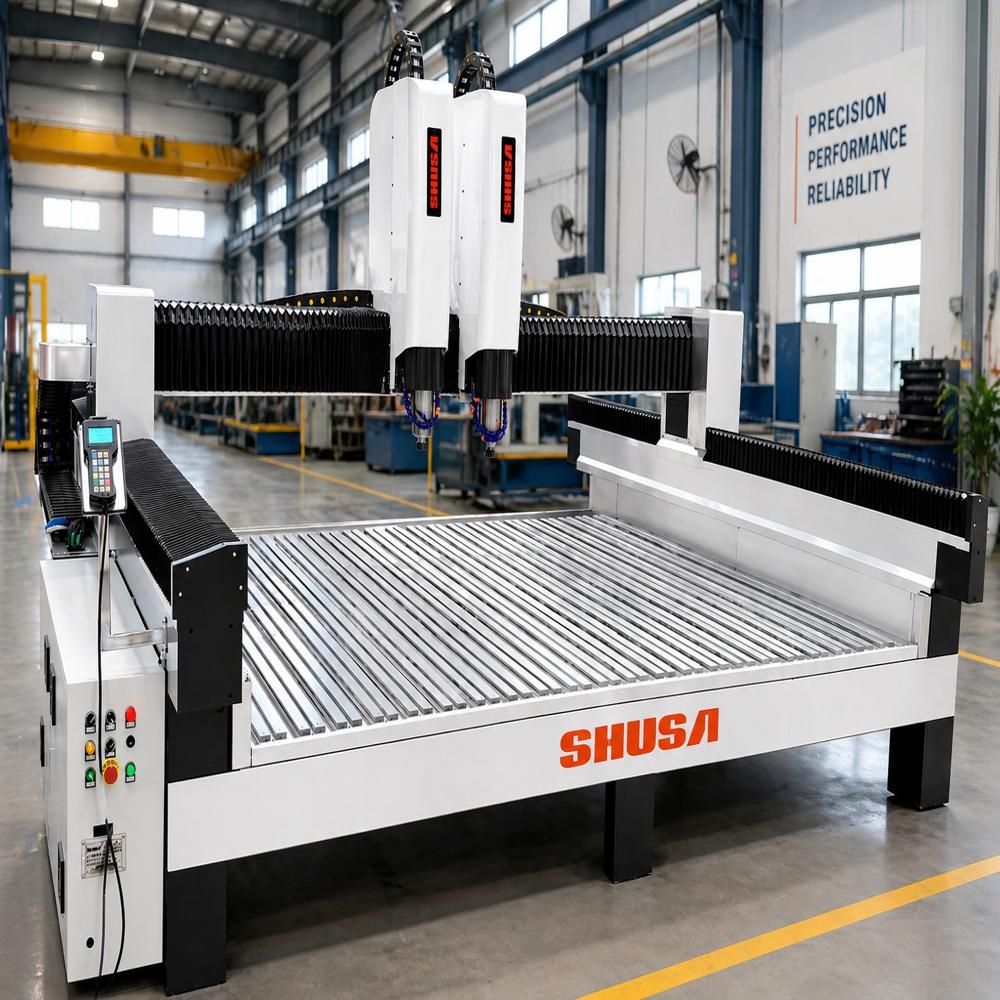

Dual Spindle CNC Stone Engraving Machine SM 3025 S2 .

Send Inquiry

Request To Call Back

Dual Spindle CNC Stone Engraving Machine SM 3025 S2 .

Name: Dual Spindle CNC Stone Engraving Machine SM 3025 S2 .
Brand: SHUSA MECHATRONICS
Price: 1141000.0 INR
Availability: InStock

Price 1141000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Dual Spindle CNC Stone Engraving Machine SM 3025 S2 . Specification

Product Type
Dual Spindle CNC Stone Engraving Machine SM 3025 S2 .

General Use
Application Materials: Marble, Granite, Stone, Wood, MDF, Acrylic, PVC

Material
Stainless Steel

Type
CNC Router

Capacity
1 Pcs/hr

Weight (kg)
2210 Kilograms (kg)

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
7.5 Kilowatt (kW)

Rigidity
High

Voltage
10 Horsepower (HP)

Motor
AC Motor

Table Size
3000 X2500

Spindle Speed
24000 RPM

Axial Choice
3

Dimension (L*W*H)
3000 X2500X330 Millimeter (mm)

Feature
High Speed

Color
White

Warranty
1

Dual Spindle CNC Stone Engraving Machine SM 3025 S2 . Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Week

About Dual Spindle CNC Stone Engraving Machine SM 3025 S2 .

SM3025 S2 is a heavy-duty CNC engraving and cutting machine with a 3000 2500 mm working area, designed for high-precision industrial applications. It features a powerful water-cooled spindle, AC servo motors, rack and pinion drive system, and dual-head configuration for faster production. The machine is widely used for stone, marble, granite, wood, acrylic, and signage cutting and engraving work.
Model: SM3025 S2
Machine Type: CNC Engraving & Cutting Machine (Double Head)
Working Area: 3000 2500 mm
Spindle Power: 7.5 kW Water-Cooled Spindle
Spindle Speed: 0 24,000 RPM
Drive System: Rack and Pinion (X & Y Axis)
Guide System: Linear Guide Rails
Motors: AC Servo Motors (High Precision)
Control System: CNC Controller (DSP / NC Studio)
Z Axis Travel: Approx. 300 450 mm
Max Working Speed: Up to 25,000 30,000 mm/min
Table Structure: Heavy Duty Steel Fabricated Body
Cooling System: Water Cooling for Spindle
Lubrication System: Automatic Lubrication System
Working Voltage: 380V / 3 Phase / 50Hz
Repeat Positioning Accuracy: 0.02 mm (approx.)
Application Materials: Marble, Granite, Stone, Wood, MDF, Acrylic, PVC
Special Feature: Double Head for High Production Efficiency

Superior Dual Spindle Efficiency

The SM 3025 S2 comes equipped with dual spindles, enabling simultaneous and rapid engraving-doubling productivity compared to single-spindle machines. This efficiency is particularly beneficial for large-scale projects or repetitive tasks, where it guarantees consistent, high-precision results while saving valuable production time.

Precision & Versatility Across Materials

Capable of processing marble, granite, stone, wood, MDF, acrylic, and PVC, this CNC router delivers remarkable versatility. Its rigid stainless steel frame and advanced control systems assure fine detail and accuracy, whether you're working on intricate designs or heavy-duty stone engraving projects.

User-Friendly Automated Operation

The fully computerized, automatic design supported by PLC control and a white, intuitive interface ensures seamless operation. Users experience minimum manual intervention, reduced errors, and straightforward workflow, making it suitable even for operators with moderate technical experience.

FAQ's of Dual Spindle CNC Stone Engraving Machine SM 3025 S2 .:

Q: How does the dual spindle feature improve engraving efficiency?

A: The dual spindles allow the SM 3025 S2 to operate two tools simultaneously, enabling it to engrave more quickly and handle multiple designs or larger workpieces in one cycle, thus significantly enhancing production speed and throughput.

Q: What materials can this CNC stone engraving machine process?

A: This machine is engineered for diverse applications, including engraving and cutting marble, granite, various stones, wood, MDF, acrylic, and PVC, making it highly versatile for different manufacturing and artistic needs.

Q: When should I use the automatic features of this CNC router?

A: The automatic features, controlled via PLC and computer programming, are ideal for repetitive, complex, or precision tasks where consistency is crucial. Use these settings for batch production or high-detail engraving to achieve optimal quality and efficiency.

Q: Where can the SM 3025 S2 be installed for optimal use?

A: It should be installed in a workshop or manufacturing facility with sufficient space to accommodate its 3000 x 2500 x 330 mm dimensions and 2210 kg weight. Ensure stable, level flooring, and proper electric supply for safe and efficient operation.

Q: What is the typical process for operating the SM 3025 S2?

A: Operators first program the desired designs using the computerized software. The material is fixed onto the large table, and the machine settings (such as spindle speed and toolpath) are configured. With PLC automation, the machine conducts the engraving with high precision and minimal supervision.

Q: How does the high spindle speed benefit my projects?

A: The 24,000 RPM spindle speed enables fast, smooth cutting and engraving, leading to cleaner edges and finer details, especially on dense materials like stone and granite.

Q: What warranty and support are available for this CNC engraving machine?

A: The SM 3025 S2 comes with a one-year manufacturer warranty, covering key components and manufacturing defects. This ensures users have reliable support and assistance during initial operations.
